Transmission Parts

Transmission Parts

By Leave a Comment

Slewing Bearings

Slewing Bearings
Slewing Bearings

Slewing support bearings consist of an inner ring and an outer ring, one of which usually contains a gear. Together with the connecting holes in the two rings, they enable optimized power transmission and quick and easy connections between adjacent machine components. The raceways of the bearings work together with the rolling parts (as well as the cage or spacer) to withstand one-way loads or combined loads in any direction.

SMI manufactures a wide range of standard and custom support slewing bearings with an outer diameter of 0.1 – 16 m to meet the specific application needs of our customers.

Slewing Bearings -2
Slewing Bearings -2

SMI products are widely used in: precision machine tools, machining centers, industrial robots, harmonic reducers, precision spindles and turntables, CNC welding machines, automobiles and automobile production lines, electronic and electrical equipment lines, building materials machinery, high-voltage switches, high-wire rolling mills, textile machinery, oil and gas industry, ports, mining lifting wire rope industry; automobile tire radial braiding machine; wire rope braiding machine; silicon wafer cutting machine; Industrial (automotive and household appliances) coating lines and other fields.

By Leave a Comment

Trailer Jack

Trailer Jack

5000 pound jack parameters
Portable Crank for trailer jack
Customized Trailer Jack

SMI specializes in customizing trailer accessories since 1996, including Weight Distribution & Sway Control System, Flat_bottom Jacks, and Wheeled Jacks, etc. It is very popular in the trailer accessories market in the United States and Australia.

By Leave a Comment

Cast Iron Alloying Cage

SMI Cast Iron Alloying Cage

Used for magnesium alloying in aluminum cast house furnaces. Mg capacity: 260kg ~ 650 kg
Casting Alloy Cage, Magnesium Alloying Cage For Aluminum Furnace Equipment.

Application:
Using for adding alloy into aluminum cast house furnaces. For example magnesium, manganese, nickel and so on into aluminum furnaces. Attach the cage to a long pole. And the other end can be lifted using a forklift to add the required alloy to the furnace.

Place of Origin: China
Model Number: According to customer’s specifications
Application: Aluminum Industry
Material: Casting Alloy Steel
Capacity available: 260kg ~ 650kg
Got free quote today: inquiry@sinomachine.org

Jaula de aleación de hierro fundido
Se utiliza para la aleación de magnesio en hornos domésticos de fundición de aluminio. Capacidad de Mg: 260 kg ~ 650 kg
Jaula de aleación de fundición, jaula de aleación de magnesio para equipos de hornos de aluminio.

Aplicación:
Se usa para agregar aleación en hornos domésticos de fundición de aluminio. Por ejemplo, magnesio, manganeso, níquel, etc., en hornos de aluminio. Sujeta la jaula a un poste largo. Y el otro extremo se puede levantar con una carretilla elevadora para agregar la aleación requerida al horno.

Aplicación:
Se usa para agregar aleación en hornos domésticos de fundición de aluminio. Por ejemplo, magnesio, manganeso, níquel, etc., en hornos de aluminio. Sujeta la jaula a un poste largo. Y el otro extremo se puede levantar con una carretilla elevadora para agregar la aleación requerida al horno.

Lugar de origen: China
Número de modelo: ¡De acuerdo con las especificaciones del cliente!
Aplicación: Industria del aluminio
Material: fundición de acero aleado
Capacidad disponible: 260 kg ~ 650 kg
Obtuve una cotización gratis hoy: inquiry@sinomachine.org

By

Power take-off (PTO) Shaft

A power take-off or power takeoff (PTO) is any of several methods for taking power from a power source, such as a running engine, and transmitting it to an application such as an attached implement or separate machines.

Most commonly, it is a splined drive shaft installed on a tractor or truck allowing implements with mating fittings to be powered directly by the engine.

Semi-permanently mounted power take-offs can also be found on industrial and marine engines. These applications typically use a drive shaft and bolted joint to transmit power to a secondary implement or accessory. In the case of a marine application, such shafts may be used to power fire pumps.

Agricultural PTOs are standardized in dimensions and speed. The ISO standard for PTOs is ISO 500, which as of the 2004 edition was split into three parts:

ISO 500-1 General specifications, safety requirements, dimensions for master shield and clearance zone
ISO 500-2 Narrow-track tractors, dimensions for master shield and clearance zone
ISO 500-3 Main PTO dimensions and spline dimensions, location of PTO.
The original type calls for operation at 540 revolutions per minute (RPM). A shaft that rotates at 540 rpm has 6 splines on it, and a diameter of 1⅜”. Two newer types, supporting higher power applications, operate at 1000 RPM and differ in shaft size. The larger shaft has 20 splines (1¾” diameter), while the smaller has 21 (1⅜” diameter). All three types rotate counterclockwise when viewed from the tractor (When standing behind the tractor, the shaft turns clockwise). A 10 spline type was used with some early equipment such as the 1948 Land Rover, a six spline adapter was usually supplied. It is customary for agricultural machines manufacturers to provide the nominal PTO power specification, an indication of the available instantaneous power at the shaft.


Typical applications include:
Running a water pump on a fire engine or water truck
Running a truck mounted hot water extraction machine for carpet cleaning (driving vacuum blower and high-pressure solution pumps)
Powering a blower system used to move dry materials such as cement
Raising a dump truck bed
Operating the mechanical arm on a bucket truck used by electrical maintenance personnel or Cable TV maintenance crews
Operating a winch on a tow truck
Operating the compactor on a garbage truck
Operating a Boom/Grapple truck
Operating a truck mounted tree spade and lift-mast assembly

We offer OEM/ODM parts. The PTO shaft including spare parts which Sino Machine Industry supplied were produced per customer’s drawings or specifications. All the parts are made in China. SMI(Sino Machine Industry) Castings Serving the Industrial Markets of the World.

By

Car & Truck Automatic Transmission Parts

Car & Truck Automatic Transmission Parts
An automatic transmission, also called auto, self-shifting transmission, n-speed automatic (where n is its number of forward gear ratios), or AT, is a type of motor vehicle transmission that can automatically change gear ratios as the vehicle moves, freeing the driver from having to shift gears manually. Like other transmission systems on vehicles, it allows an internal combustion engine, best suited to run at a relatively high rotational speed, to provide a range of speed and torque outputs necessary for vehicular travel. The number of forward gear ratios is often expressed for manual transmissions as well (e.g., 6-speed manual).

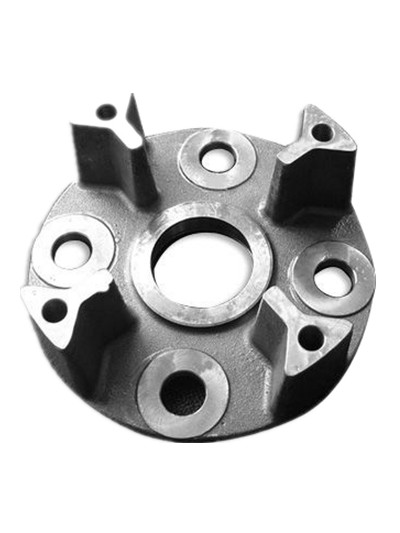

Linkage disk

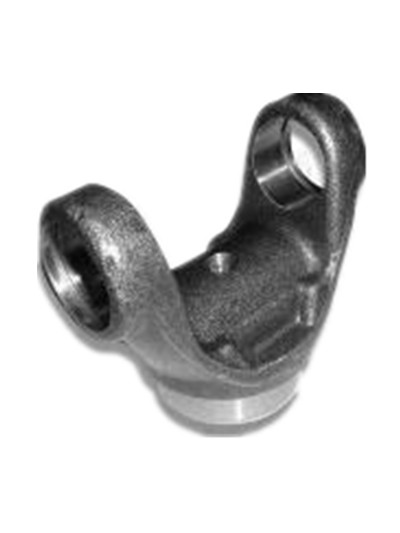

Universal joint
Release sleeve

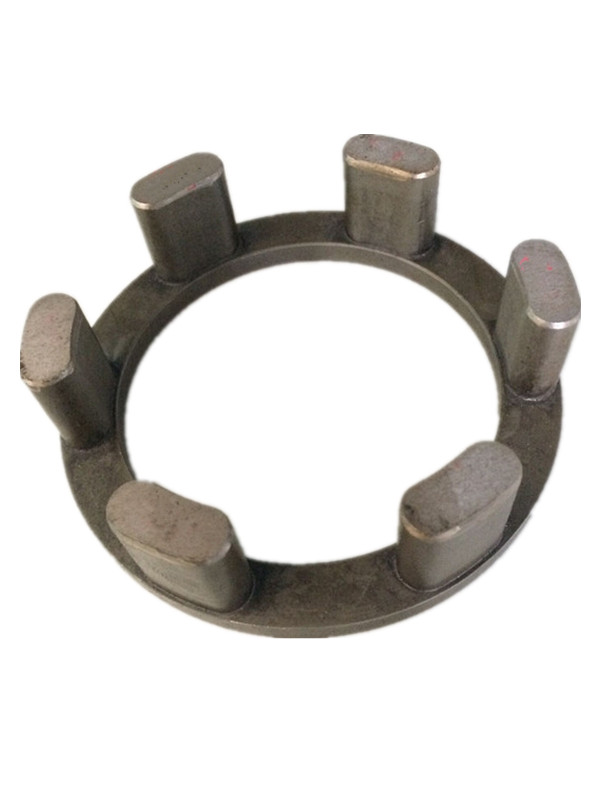

Planet carrier

A manual transmission, also known as a manual gearbox, stick shift, n-speed manual (where n is its number of forward gear ratios), standard, MT, or in colloquial U.S. English, a stick (for vehicles with hand-lever shifters), is a type of transmission used in motor vehicle applications. It uses a driver-operated clutch engaged and disengaged by a foot pedal (automobile) or hand lever (motorcycle), for regulating torque transfer from the engine to the transmission; and a gear selector operated by hand (automobile) or by foot (motorcycle).

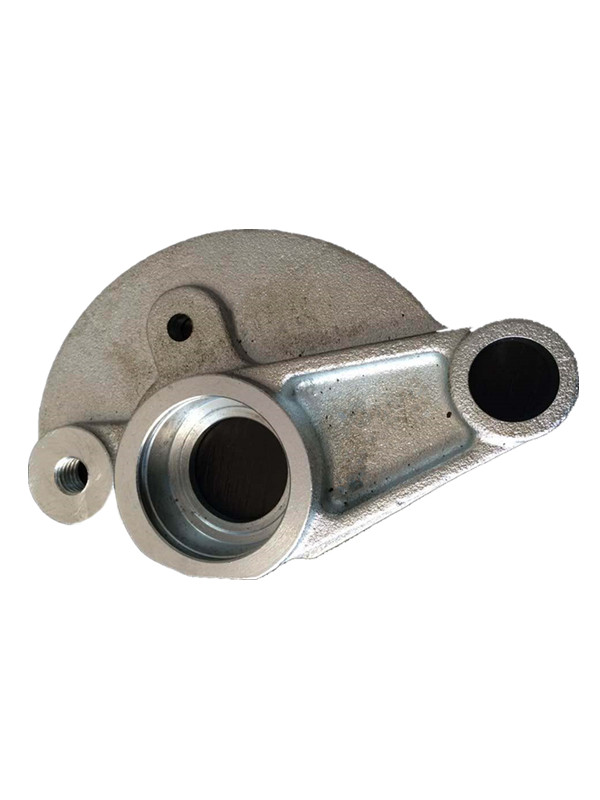

Steering knuckle

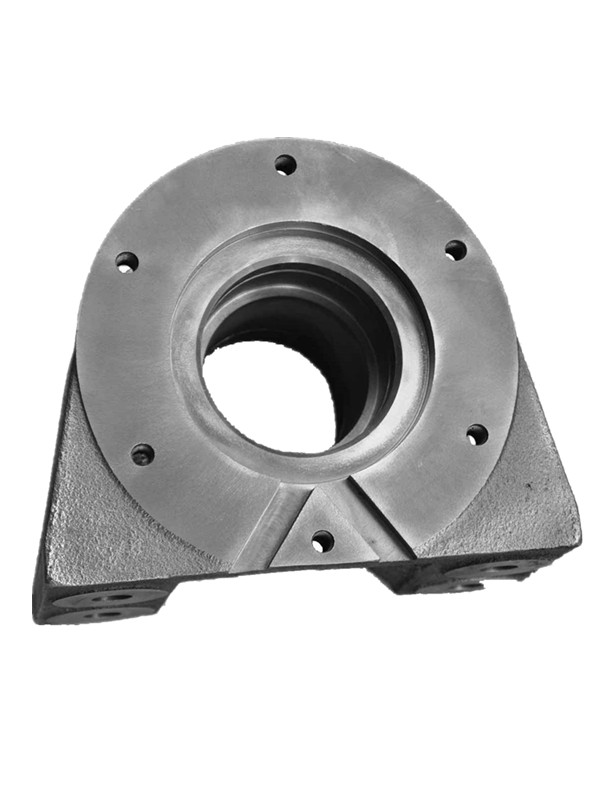

Bearing block

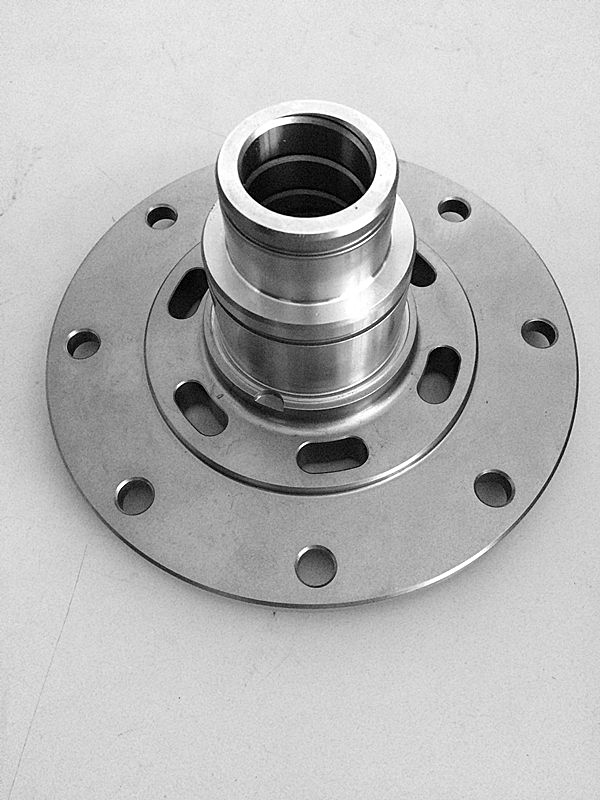

Axle hub

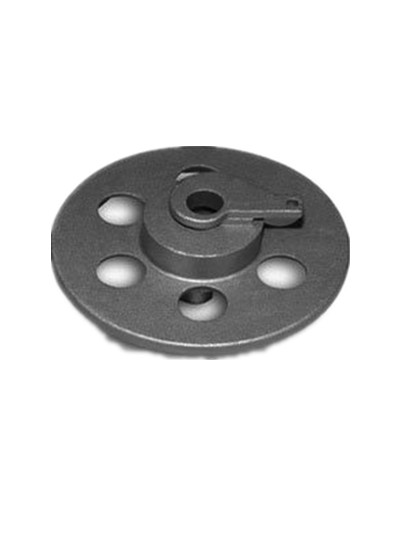

Thrust plate

A conventional 5-speed manual transmission is often the standard equipment in a base-model vehicle, while more expensive manual vehicles are usually equipped with a 6-speed transmission instead; other options include automatic transmissions such as a traditional automatic (hydraulic planetary) transmission (often a manumatic), a semi-automatic transmission, or a continuously variable transmission (CVT). The number of forward gear ratios is often expressed for automatic transmissions as well (e.g., 9-speed automatic).

Also we offer OEM/ODM truck & car parts. The truck & car parts including truck & car spare parts which Sino Machine Industry supplied were produced per customer’s drawings or specifications. All the parts are made in China. Chinese Castings Serving the Industrial Markets of the World.
